Industrial valve systems need reliable operating mechanisms to control the movement of fluids through pipelines and process equipment. A Non Rising Valve Gearbox is designed for applications where the valve stem does not move vertically while the valve is operated. This arrangement can be useful where installation space is limited or where a compact valve operating system is required.
Jayveer Enterprise provides Non Rising Valve Gearbox solutions for suitable industrial valve applications. These gearboxes help provide mechanical advantage and controlled operation for compatible valves. Selecting the right gearbox according to valve torque, size, mounting arrangement, and operating conditions is important for dependable performance.
What Is a Non Rising Valve Gearbox?

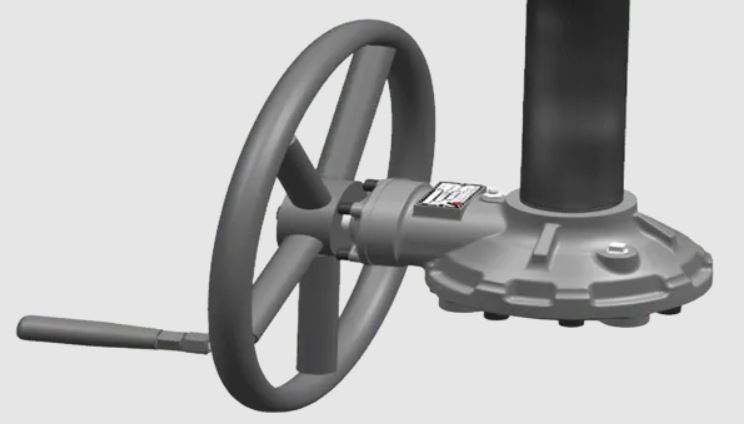

A Non Rising Valve Gearbox is a mechanical device used to operate valves equipped with a non-rising stem arrangement. In this type of valve configuration, the stem rotates during operation without moving upward or downward.
The gearbox transfers rotational movement from the input mechanism to the valve stem. This allows the operator to open or close the valve while keeping the stem within a fixed vertical position.
A suitable Non Rising Valve Gearbox can provide controlled operation while maintaining a compact installation arrangement.
Importance of Non Rising Valve Gearbox
Valve installations may be located in areas where vertical clearance is limited. A rising-stem arrangement can require additional space because the stem moves upward during operation.
A Non Rising Valve Gearbox can be suitable for applications where maintaining a fixed stem position is beneficial. The gearbox also provides mechanical advantage, making operation easier for valves that require higher torque.
Proper gearbox selection helps ensure that the valve can be operated smoothly and consistently under its intended working conditions.
How Does a Non Rising Valve Gearbox Work?
The working principle of a Non Rising Valve Gearbox involves transmitting rotational movement to the valve stem through an internal gear mechanism.
When the operator turns the handwheel or input mechanism, the gears transfer the torque to the valve stem. The stem rotates without rising or falling vertically, allowing the valve mechanism to move between its operating positions.
The gear ratio determines the relationship between input movement and output torque. The appropriate ratio depends on the valve’s operating requirements.
Features of Non Rising Valve Gearbox
A Non Rising Valve Gearbox may include a robust housing, internal gears, input shaft, output connection, handwheel, mounting arrangement, lubrication system, and position indication.
The specific construction varies according to the gearbox model and application. Industrial environments may require suitable protection against dust, moisture, temperature changes, and other external conditions.
The gearbox must be properly matched with the valve stem and mounting configuration for reliable operation.
Benefits of Non Rising Valve Gearbox
One important benefit of a Non Rising Valve Gearbox is its compact operating arrangement. Since the valve stem does not rise vertically, the installation may require less overhead clearance.
The gearbox can also provide mechanical advantage, reducing the effort needed to operate compatible valves. Controlled rotational movement can make opening and closing operations more manageable.
For suitable industrial applications, a properly selected gearbox can support dependable valve operation and simplify manual control.
Applications of Non Rising Valve Gearbox
A Non Rising Valve Gearbox can be used across various industrial sectors where compatible non-rising stem valves are installed. Applications may include water treatment systems, wastewater plants, pipelines, industrial processing facilities, and utility systems.
These gearboxes can be used in locations where overhead space is restricted or where a fixed stem arrangement is preferred.
The correct gearbox depends on valve type, operating torque, stem configuration, installation dimensions, and environmental conditions.
Selecting the Right Non Rising Valve Gearbox
Choosing a suitable Non Rising Valve Gearbox requires evaluation of the valve’s operating torque and mechanical configuration. The gearbox should be capable of delivering the required output torque without excessive operating effort.
Mounting dimensions and stem compatibility are also important. Other considerations may include operating frequency, temperature, environmental exposure, and required protection level.
Reviewing the technical specifications of the valve and gearbox before installation can help ensure proper compatibility.
Installation and Maintenance
Correct installation is essential for the effective operation of a Non Rising Valve Gearbox. The gearbox should be securely mounted and correctly aligned with the valve.
Before commissioning, the valve assembly should be operated to verify smooth movement and correct direction of rotation. Regular maintenance can help identify lubrication issues, gear wear, unusual noise, or excessive resistance.
Following recommended inspection and maintenance procedures can help maintain the operating condition and service life of the gearbox.
Why Choose Jayveer Enterprise?
Jayveer Enterprise provides Non Rising Valve Gearbox solutions for industrial valve applications. The company focuses on supplying suitable gearbox options based on different valve operating requirements.
Factors such as torque, valve configuration, mounting arrangement, and operating environment are important when selecting a gearbox. Jayveer Enterprise can provide solutions according to the technical requirements of compatible valve systems.
For industrial users and manufacturers, selecting a suitable gearbox can support convenient and controlled valve operation.
Quality Control in Valve Gearboxes
Quality control is important for mechanical components used in industrial valve systems. A Non Rising Valve Gearbox should be inspected for proper construction, gear operation, mounting compatibility, and smooth torque transmission.
After installation, regular checks can help identify potential mechanical problems before they affect normal operation. Lubrication and other maintenance requirements should be followed according to the applicable specifications.
Proper quality checks and maintenance can support consistent gearbox performance.
Conclusion
A Non Rising Valve Gearbox is a practical mechanical solution for operating compatible valves where the stem rotates without vertical movement. Its compact arrangement can be useful in installations with limited overhead clearance, while the gearing mechanism provides mechanical advantage for valve operation.
Jayveer Enterprise offers Non Rising Valve Gearbox solutions for industrial valve applications requiring controlled and reliable operation. With proper selection, installation, inspection, and maintenance, a suitable gearbox can support smooth and dependable valve performance.
